Wiped-Film Short Path Distillation System

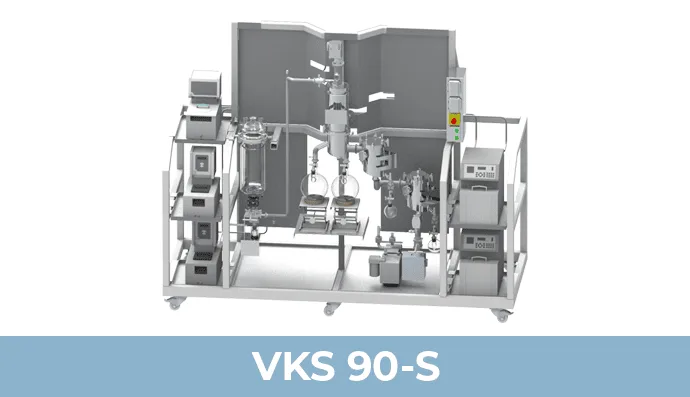

VKS 90-S

Key Features

Throughput Capability: Typically 3.5 L/h, Maximum of 4.25 L/h

Optimal Yields and Potency: Finished distillate contains up to 99% total cannabinoids

Fully Jacketed System: Heated from start to finish, negating the use of heating tape or heat guns to keep product moving through the system

Regulated Feed Rate: German engineered gear pump allows for precise feed rate control,which is critical for obtaining consistently optimal results

GMP Ready: Optional GMP package includes FAT, SAT, IQ, OQ. Equipment can be further customized according to your URS to meet any local or international GMP requirements

Economical Processing: Specifically engineered for maximum processing performance and build quality at an industry leading price point

Expert On-Site Training: Instructions for operation of equipment and proprietary parameters for producing distillate are included with purchase

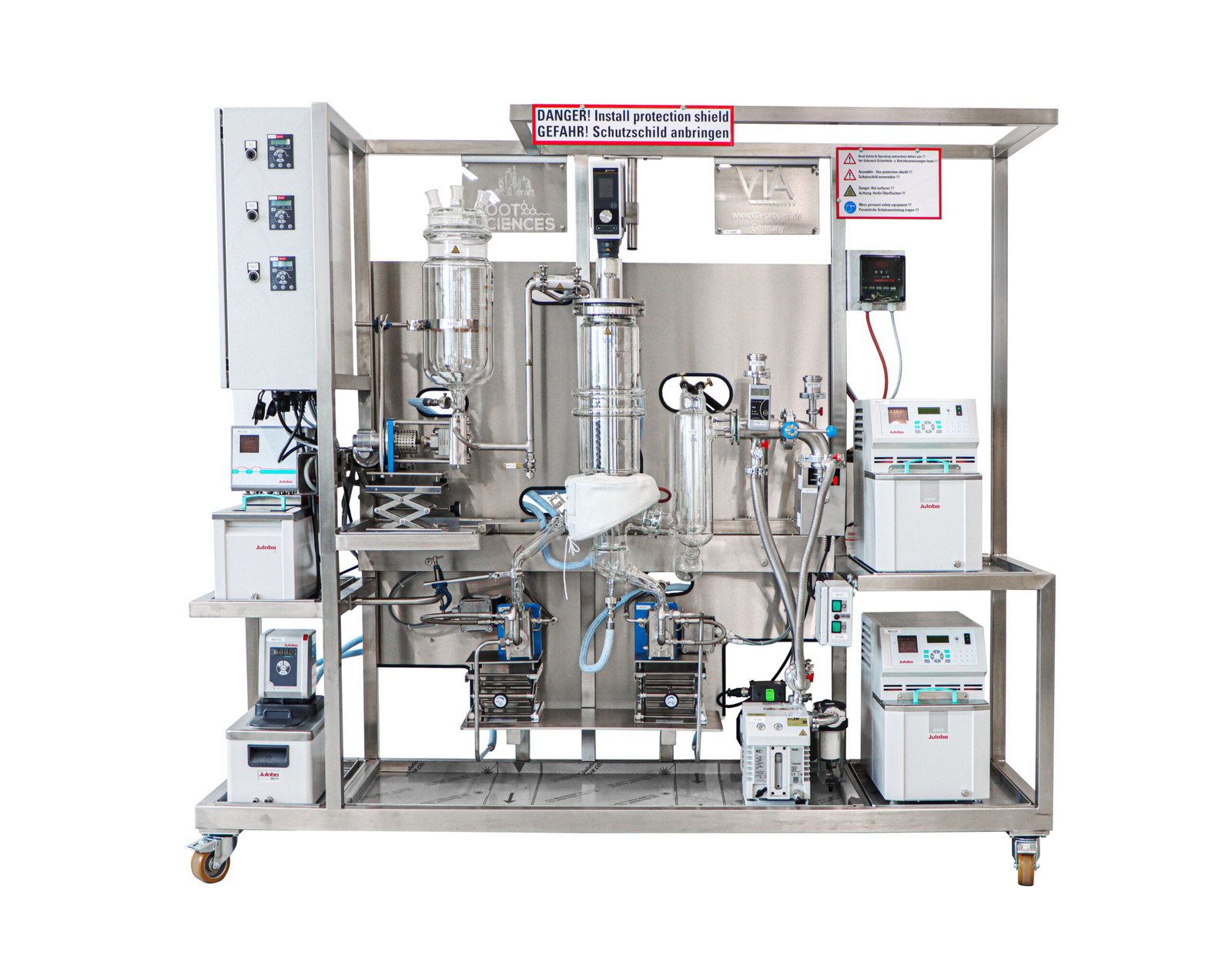

Wiped-Film Short Path Distillation Equipment

Root Sciences’ wiped-film molecular distillation plants are specifically intended for the processing of cannabis and hemp crude oil, with honest and accurate throughput/yield rates reflecting that.

Designed and manufactured in Germany, these machines are expertly engineered to produce distillate that can be used in a wide variety of products commonly found on the market today.

The VKS 90-S is one of the most economical mid-sized options for reliable production of valuable cannabinoid distillate.

Technical Specs

Maximum Feed Rate4.25 L/h
Typical Throughput3.5 L/h
Evaporator Surface Area0.10 m²
Power Requirements1Φ 230 V, 60 Hz
StagesSingle
Dimensions (L x W x H)8.4’ x 3.3’ x 6.7’
CertificationUL ready (all necessary individual components are UL listed)
Warranty1 year (excluding glass and vacuum system)
Materials Used316 stainless steel, borosilicate glass, PTFE glass fiber reinforced rollers
Options10 L Feed vessel, Immersion chiller for cold trap, Separate heater for residue discharge arm, GMP package to include IQ, OQ, FAT, SAT, Heated transfer hose to connect multiple units in series

Have a Question?

ROI/Payback Period

Material
Cannabis
Hemp
Cannabis
Hemp
Daily Processing Time
8-hour (one shift)
24-hour continuous (three shifts)
Daily Crude Cost
$44,400
$3,850
$133,200
$11,550
Daily Distillate Yield
12 L
36 L
Daily Distillate Value
$78,500
$6,550
$235,500
$19,650
Payback Period
5 days
66 days
2 days
22 days
Hemp data based on US average prices according to hempbenchmarks.com March 2021 spot price index report. Cannabis data based on 80% yield at Washington State I-502 market prices.
