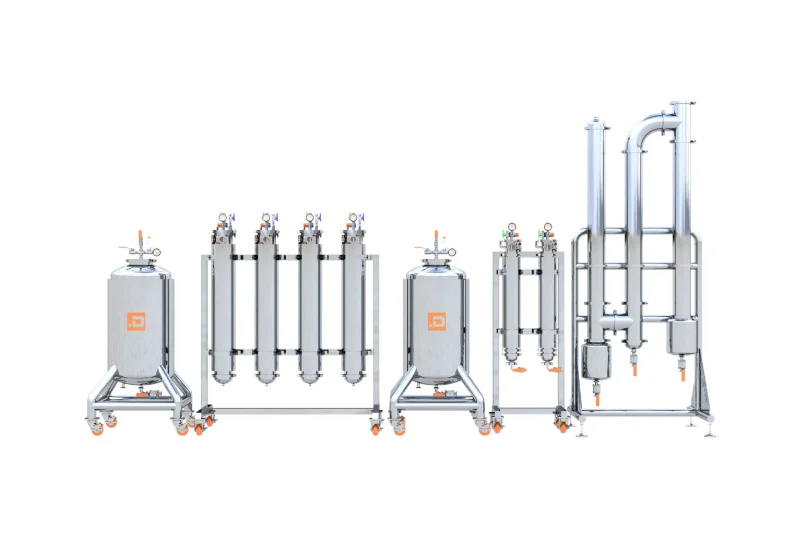

40.HX for Scaled BHO Extraction
Delivering Efficient, Closed-Loop BHO Extraction for Cannabis and Hemp Processors
The 40.HX is built for cannabis and hemp processors who need to move serious volume without sacrificing product quality. Designed for high-throughput operations, this closed-loop hydrocarbon extraction system supports efficient workflows and consistent concentrate production across a wide range of BHO formats.
Ideal for large-scale processing, the 40.HX offers fast runtimes, strong solvent recovery, and terpene retention capabilities that support full-spectrum extract goals. With advanced safety features, hands-on system controls, and support from Root Sciences and Decimal Engineered, the 40.HX delivers reliable performance batch after batch—helping operators meet demand without bottlenecks or compromise.
- Industrial-Scale Processing: Handles up to 40 lb of biomass per run, with 2 runs per hour.
- Fully Jacketed System: Material columns and solvent tank with internal temperature sensors for precise cooling down to -60° C.
- C1D1 Touchscreen Control: Explosion-proof tablet interface delivers precision control at your fingertips.
- Smart Safety Sensors: Integrated solvent tank load sensor eliminates the need for a separate C1D1 scale.
- Built to Last: Made in the USA with domestic stainless steel for lasting corrosion resistance, backed by hands-on installation and training at your facility.
| Throughput | 640 lb/8 h shift |
| Capacity | 40 lb |
| Solvent Recovery Rate | 8-12 lb/min |
| Solvents | Butane, Propane, Isobutane |
| Solvent to Biomass | 5:1 |
| Recovery Method | Passive |
| Cycle Time | Approx. 30 minutes |
| Vacuum: | Welch CRVPro 16 Explosion Proof |
| Dimensions (L x W x H) | 19′ x 3’4″ x 8’9″ |
| Working Area | 140 ft² |
| Peer Reviewed | Pressure Safety Inspectors |
Meets or exceeds all industry listed standards for:
- ASME Section VIII
- GMP
- IFC 3904.4
- NFPA 1:38.6.1.5.6.1
- 3-A Sanitary Standard
- C1D1
- NSF
- UL21
