The 5.HX: Compact Hydrocarbon Extraction with Full-Spectrum Control
Closed-Loop BHO Extraction System for Craft Cannabis Processing

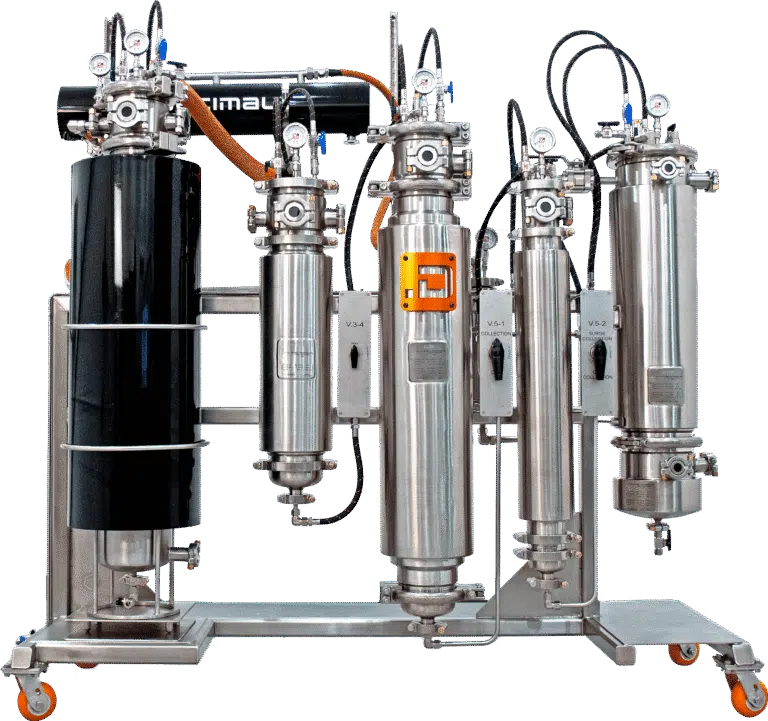

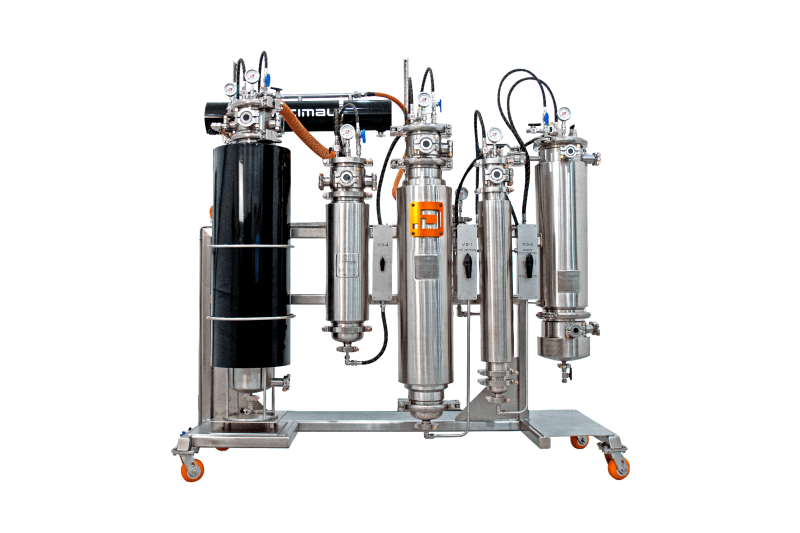

The 5.HX Hydrocarbon Extractor from Decimal Engineered is designed to meet the growing demand for efficient, small-batch cannabis and hemp extraction. Ideal for boutique labs and operators focused on high-quality BHO concentrates, this system offers the flexibility to run with butane, propane, or custom solvent blends—supporting a wide range of end products including live resin, wax, and sauce.
Its closed-loop design prioritizes safety and solvent recovery, while jacketed vessels provide precise control over temperature throughout the extraction and recovery process. The 5.HX features ASME-certified pressure vessels and modular components, making it compliant, maintainable, and adaptable to changing production needs. Its compact footprint and user-friendly interface make it especially valuable in labs where space and workflow efficiency are a priority. Whether you’re starting a new operation or adding capacity for craft concentrates, the 5.HX delivers dependable performance without excess complexity.
- Lab-Scale Processing: Extracts 5 lb of biomass per run, 10 lb per hour, and approximately 80 lb per 8-hour shift.
- Passive Recovery System: Horizontal tube-in-shell condenser eliminates the need for noisy compressor pumps.
- Touchscreen HMI Control: Operate chillers and vacuum from inside the extraction booth via a C1D1 touchscreen interface.
- Single-User Friendly Design: Color-coded valve handles and labeled valve plates make SOPs simple to follow.
- Built to Last: Made in the USA with domestic stainless steel for lasting corrosion resistance, backed by hands-on installation and training.
| Throughput: | Approx. 80 lb/8 h shift |
| Capacity: | 5 lb |
| Solvent Recovery Rate: | 1 lb/min |
| Solvents: | Butane, Propane, Isobutane |
| Solvent to Biomass: | 5:1 |
| Recovery Method: | Passive |
| Cycle Time: | Approx. 30 minutes |
| Vacuum: | Welch CRVPro 4 Explosion Proof |
| Dimensions (L x W x H): | 75″ x 31″ x 74″ |
| Working Area: | 17 ft² |
| Peer Reviewed: | Pressure Safety Inspectors |
Meets or exceeds all industry listed standards for:
- ASME Section VIII
- GMP
- IFC 3904.4
- NFPA 1:38.6.1.5.6.1
- 3-A Sanitary Standard
- C1D1
- NSF
- UL21
