In the cannabis industry, the extraction of potent compounds from plants, particularly cannabinoids, is one of the core processes. Cold ethanol extraction has become one of the most popular extraction methods. Producers choose this extraction method due to its efficiency and ability to preserve the integrity of sensitive compounds.
This guide on the ethanol extraction process focuses on the cold ethanol extraction method, including techniques, applications, benefits, and challenges.
Sections
ToggleUnderstanding Cold Ethanol Extraction

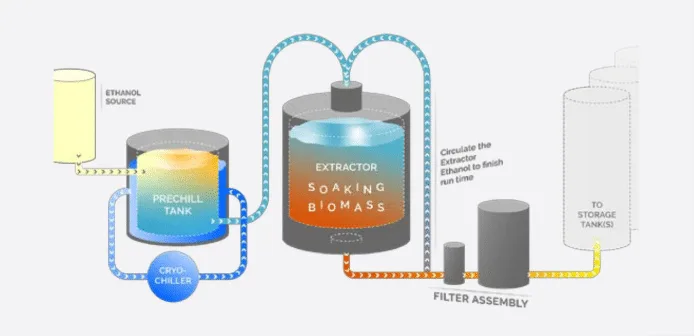

Cold ethanol extraction uses chilled ethanol as a solvent to separate desired compounds from cannabis plants. This method differs from other extraction techniques, such as CO2 or butane extraction, due to its unique combination of efficacy and simplicity.
Ethanol is one of the preferred solvents for cannabis extraction for its affordability, availability, and non-toxic nature. As a polar solvent, it can separate various compounds, including cannabinoids and terpenes, making it particularly suitable for cannabis extraction. The difference between cold and simple ethanol extraction is the temperature difference. The process uses cold ethanol, maintained at sub-zero temperatures, typically between -20°C and -40°C.
The goal of maintaining the solvent at a low temperature is to minimize the extraction of unwanted plant materials like chlorophyll and waxes. When the goal is to purer extract and preserve the extract’s natural chemical profile, the cold ethanol extraction process becomes an efficient method for quality extracts.
Techniques Involved in Cold Ethanol Extraction
The cold ethanol extraction process is similar to ethanol extraction with an added element of cold temperature. Let’s take a closer look at the techniques of the process:
1. Preparation of Material
The quality of the source plant material used for the extraction directly impacts the end product. For cold ethanol extraction of cannabinoids, the cannabis or hemp plant material is dried in a temperature and climate-controlled facility. The material is then grounded to increase the surface area of the source material. This preparation step is critical to improve extraction efficiency.
2. Cooling the Ethanol
As one of the defining steps of the process, the ethanol is cooled for cold ethanol extraction. Specialized equipment such as cryogenic chillers is used to cool down the solvent to sub-zero temperatures. Cold ethanol makes it easier to extract volatile and temperature-sensitive compounds like terpenes and prevents the extraction of undesirable plant materials.
3. Extraction Process
The extraction process involves several key steps:
- Introduction of Solvent
Cold ethanol, chilled between -20°C and -40°C, is mixed with the prepared plant material. The cold temperature ensures that unwanted plant compounds do not contaminate the ethanol extract. The ethanol-to-biomass ratio ranges from 4:1 to 10:1. - Agitation and Extraction
The solvent mixture then undergoes controlled agitation to increase the contact between the solvent and plant matter. During this phase, the ethanol dissolves the trichomes on the plant surface. These trichomes contain desired cannabinoids and terpenes. - Separation of Ethanol and Plant Material
The next step is to separate the ethanol solution from the plant material. This step uses a combination of filtration and centrifugation. Depending on the desired compound, systems may use inline filtration with progressively finer filter grades (e.g., 100 microns down to 1 micron). - Use of Vacuum and Pressure Systems

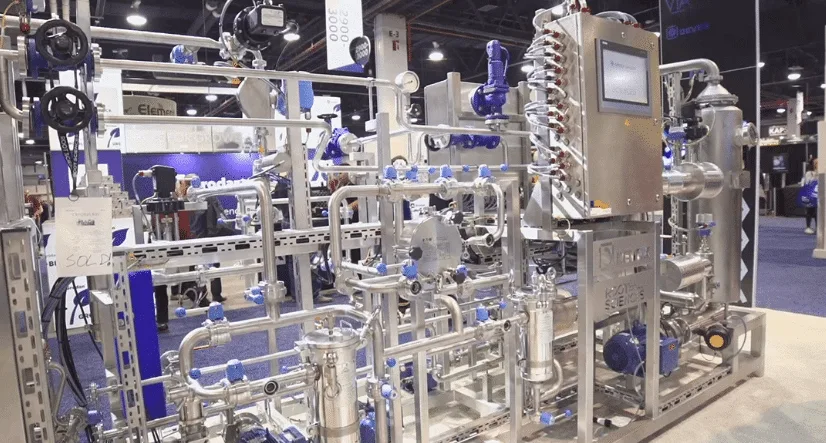

Modern cold ethanol extraction equipment also has vacuum and pressure systems to improve efficiency. With a vacuum, the boiling point of ethanol is lowered, which allows more efficient solvent removal post-extraction. Pressure systems force ethanol through the plant material, improving penetration and extraction efficiency. - Solvent Recovery
One of the benefits of the solvent extraction process is that solvent can be extracted at the last step and reused in the process. This is often done through a distillation process, where the ethanol is evaporated and then recondensed. Modern systems such as Root Sciences cold ethanol extraction equipment can recover up to 95% of the ethanol used in the extraction process.
4. Post-Extraction Processing
Once the initial extraction is complete, producers take additional steps to refine the extracts further. They use the process of filtration for remaining plant particles. Winterization is also used to separate and remove fats and waxes.
These post-processing steps are crucial in producing a high-quality, refined extract.
Find the Ideal Cold Ethanol Extraction Equipment for Your Business
Benefits of Cold Ethanol Extraction
The process is preferred for several reasons, which include:
Preservation of Potency and Flavor
As mentioned before, cold ethanol is inert and can preserve the potency and flavor profile of the original plant material. Even the most volatile compounds, like terpenes, can be maintained at low temperatures. Terpenes are the compounds that give cannabinoids their characteristic aroma and flavor.Efficiency and Yield
Another benefit of cold ethanol extraction is its high efficiency and excellent yield rates. Compared to other methods, it can extract a broader range of compounds in a single process. This makes it an attractive option for large-scale operations.Safety and Sustainability
Ethanol is generally considered safe (GRAS) by the FDA and is non-toxic. Its safety profile makes the cold ethanol extraction method safer for operators and end-users. There is no involvement of hazardous solvents. Additionally, ethanol is a renewable resource that can be produced sustainably. Recycling and reusing ethanol in the extraction process further enhances its sustainability and environmental friendliness.
Applications of Cold Ethanol Extracts
Cold ethanol extraction finds applications across many segments due to its efficiency, high yield, and affordability.
1. Cannabis Oils and Concentrates
The primary industry utilizing cold ethanol extraction is cannabis product manufacturing for the production of oils and concentrates. Due to its ability to produce potent and full-spectrum extracts, producers use the ethanol extraction process for oils, distillates, and isolates.
2. Edibles and Beverages
Cold ethanol extracts have a strong flavor profile, which makes them ideal for culinary applications, including cannabis-infused edibles and beverages. Producers use such products to maintain their original taste while delivering the desired cannabinoid content. Also, the solubility of ethanol-based extracts is high, making them suitable for beverage use.
3. Topicals and Tinctures
The pharmaceuticals and skincare industry uses cannabis ethanol extraction products for topical applications and tinctures. The purity and potency of the extracts make them suitable for products like balms and lotions. Tinctures based on cold ethanol extracts offer consumers a fast-acting and easily disable form of cannabis
Challenges and Considerations
The benefits of cold ethanol extraction make it a lucrative option for producers, but there are also challenges involved:
- Temperature Control: Maintaining ethanol at sub-zero temperatures requires a process that can be technically challenging and energy-intensive.
- Solvent Removal: Post-processing is an additional step that increases the cost of operations. For product safety, removing ethanol from the extracts is essential.
- Scalability: While efficient for large-scale production, scaling up cold ethanol extraction can require significant investment in equipment and facilities.
- Regulatory Compliance: Producers are subjected to strict regulatory oversight in many jurisdictions to store and use ethanol in extraction processes, requiring careful adherence to safety and quality standards.
Conclusion
Whether you are a seasoned producer or an enthusiast planning to venture into the cannabis industry, cold ethanol extraction is a technique you should consider.
Cold ethanol extraction can produce high-quality, full-spectrum cannabis products while maintaining safety and efficiency. As the demand for premium-quality cannabis products is increasing, high-quality extraction methods like cold ethanol extraction have become essential. From preserving the delicate terpene profiles of cannabis to enabling the creation of a wide range of products, the process will remain a key player in cannabis processing.
