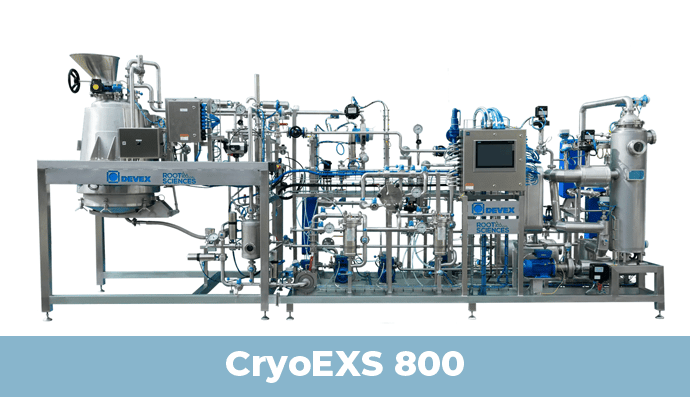

CryoEXS 800 Cryogenic Ethanol Extraction Equipment

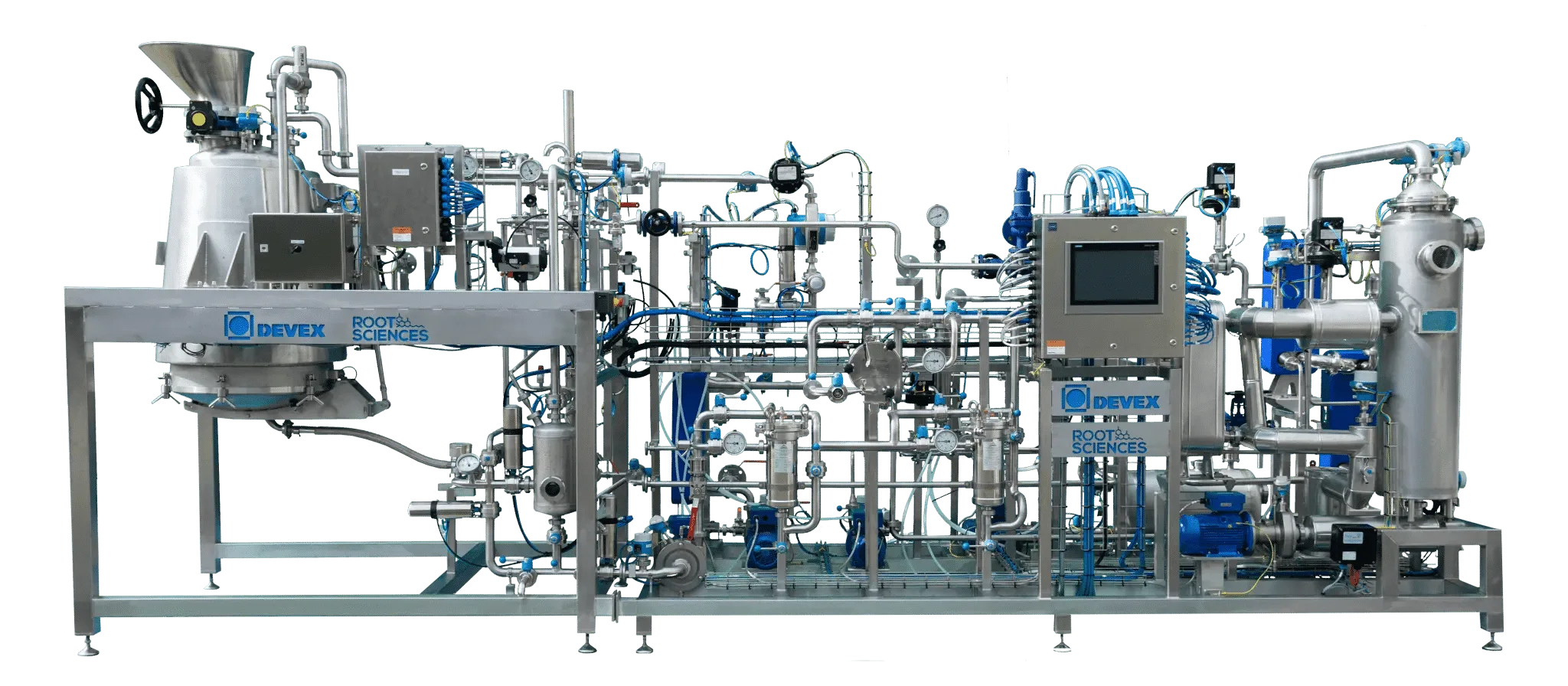

CryoEXS 400 ethanol extraction system

Specifications

EXTRACTIONExtractor 1 x 300 L
Solvent Ethanol (other solvents on request)
Extraction Temperature -40 °C
EVAPORATIONEvaporation Capacity 264 kg/h ethanol (350 L/h)
Feed Quantity 100 – 800 kg/h (variable)
Solvent Ethanol
Evaporation Pressure 50 – 600 mbar (abs)
ELECTRICAL SPECIFICATIONSMains Requirements 3Φ 480 V, N+PE, 60 Hz
Power Consumption 67.5 kW
FACILITY REQUIREMENTSAmbient Air Temperature 5 – 40 °C
Ambient Humidity 25 g/kg dry air (90% RH)
Machine Dimensions 17.62’ x 5.09’ x 7.97’ (L x W x H)

Key Features

  • Throughput Capability: 800 lb per 8-hour shift
  • GMP Ready: Made with cleanliness, efficiency, and reliability in mind, with tailored GMP documentation included
  • The Complete Solution: Skidded, scalable system automatically performs solvent cooling, extraction, biomass desolventization, extract filtration, solvent recovery, and decarboxylation
  • Reliable, Powerful Chilling: Reliable refrigeration solutions provided by industry-leading experts, trusted by companies like Tesla, BP, Apple, Coca-Cola, among others
  • Modular Filtration: Negating the need for winterization, our modular and reconfigurable filtration assembly allows for flexibility, and easy maintenance, cleaning, and element replacement
  • Evaporation and Decarboxylation: Efficient solvent recovery capacity at a sustained 350 liters per hour, this essential function is highly automated, enabling reliable continuous operation
  • Energy Efficiency: Recaptures latent heat from cold ethanol after extraction, translating into a lower utility bill and ensuring the lowest possible cost of operation
  • Materials Conveyance: Capable of integrating into an automated materials conveyance system allowing for sanitary operation with automated biomass input and product discharge
  • Expert On-Site Training: Detailed Standard Operating Procedures included for operation, maintenance, and troubleshooting of equipment
  • Service and Maintenance: Service packages to keep equipment in top operational condition

Have a Question?

All-In-One Cryo-Ethanol Extraction Solution

Root Sciences’ all-in-one cryo-extraction, solvent recovery and decarboxylation systems are designed for the recovery of cannabis crude extract from cannabis biomass. The used solvent can be recovered and reused for further extraction processes. This model handles approximately 800 lb (360 kg) per 8-hour shift (depending on the bulk density of the raw material).

The CryoEXS 800 is an all-in-one system, which provides several unrivaled benefits:

  • Equipment Included: No need for separate equipment for winterization, solvent recovery, decarboxylation, or devolatilization
  • Rapid Process: Processing time is reduced from several days to several hours
  • Reduced Labor: Fewer operators are required, saving on labor costs
  • Scalable, Skidded System: Scalable, skidded system with 400, 800, and 4,000 lb throughput (per 8-hour shift) options
  • Automation: State-of-the-art sensors, controllers, and simple touch-screen interface allow a single operator to monitor the system

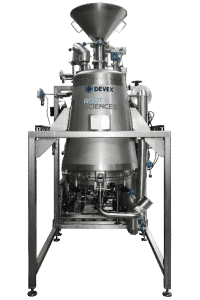

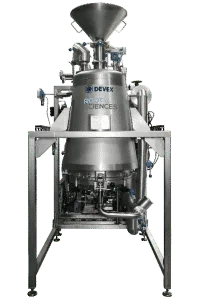

Cannabis EXTRACTION equipment LINE - DEVEX Front view

ROI / Estimated Payback Period

Material
Cannabis
Hemp
Cannabis
Hemp
Daily Processing Time
8-hour (one shift)
24-hour continuous (three shifts)
Daily Concentrate Yield
26 kg
77 kg
Daily Concentrate Value
$77k
$26k
$230k
$78k
Payback Period
22 days
68 days
8 days
23 days

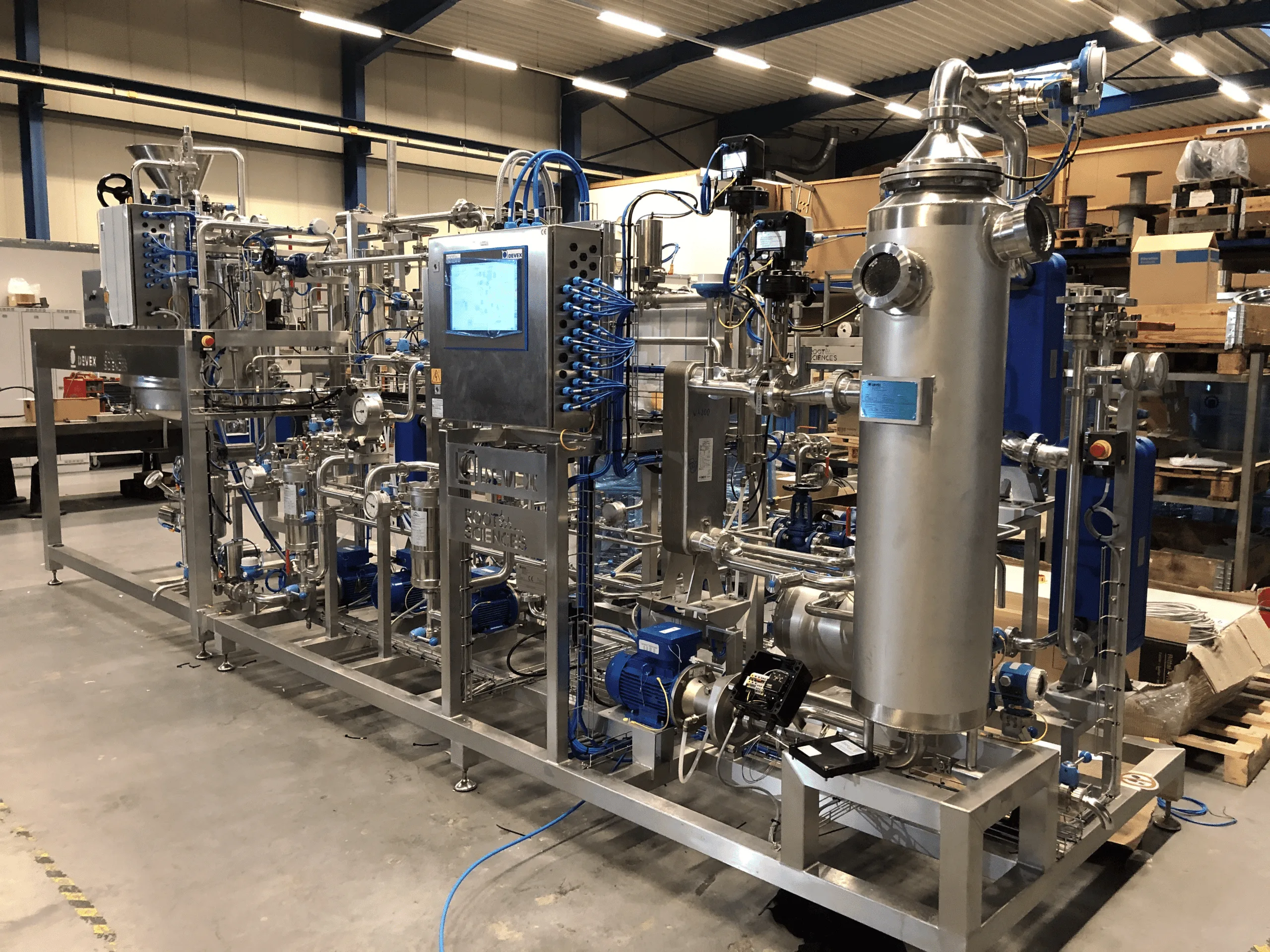

DEVEX CryoEXS 800 cannabis distillation equipment
