- Extraction Equipment
Nordex 50
Solventless Cold Water Extraction System
Discover the Nordex 50 Cold Water Extraction System, a compact and efficient solution for small-batch bubble hash and isolator production. Learn how it works, its key features, and benefits for artisanal extractors.
- Precision Glycol Cooling with No Ice Required
Maintains process water at 0–2°C (32–35.6°F) for optimal trichome separation and consistent extraction performance without the need for ice. Gentle Variable-Speed Agitation
Whirlpool-style agitation separates trichomes while minimizing biomass damage, helping preserve valuable cannabinoids and terpene profiles.Multi-Stage Trichome Collection (250μm–25μm)
Separates multiple grades of bubble hash in a single run, enabling operators to classify products by quality and maximize biomass value.Closed-Loop Reusable Water System
Recirculates process water for multiple washes, reducing water consumption, lowering operating costs, and supporting sustainable processing practices.Automated Recipe Management and Data Logging
SCADA-based controls with Rockwell drives allow operators to save recipes, monitor process data, and achieve repeatable batch-to-batch results
| Biomass Processing Capacity (kg): | 2-3 fresh frozen |
| Batch Time: | 15-45 min/batch |
| Working Area (L x W x H): | 3.23 m x 4.34 m x 2.46 m |
| Power Consumption (kW): | 18 |
- CE

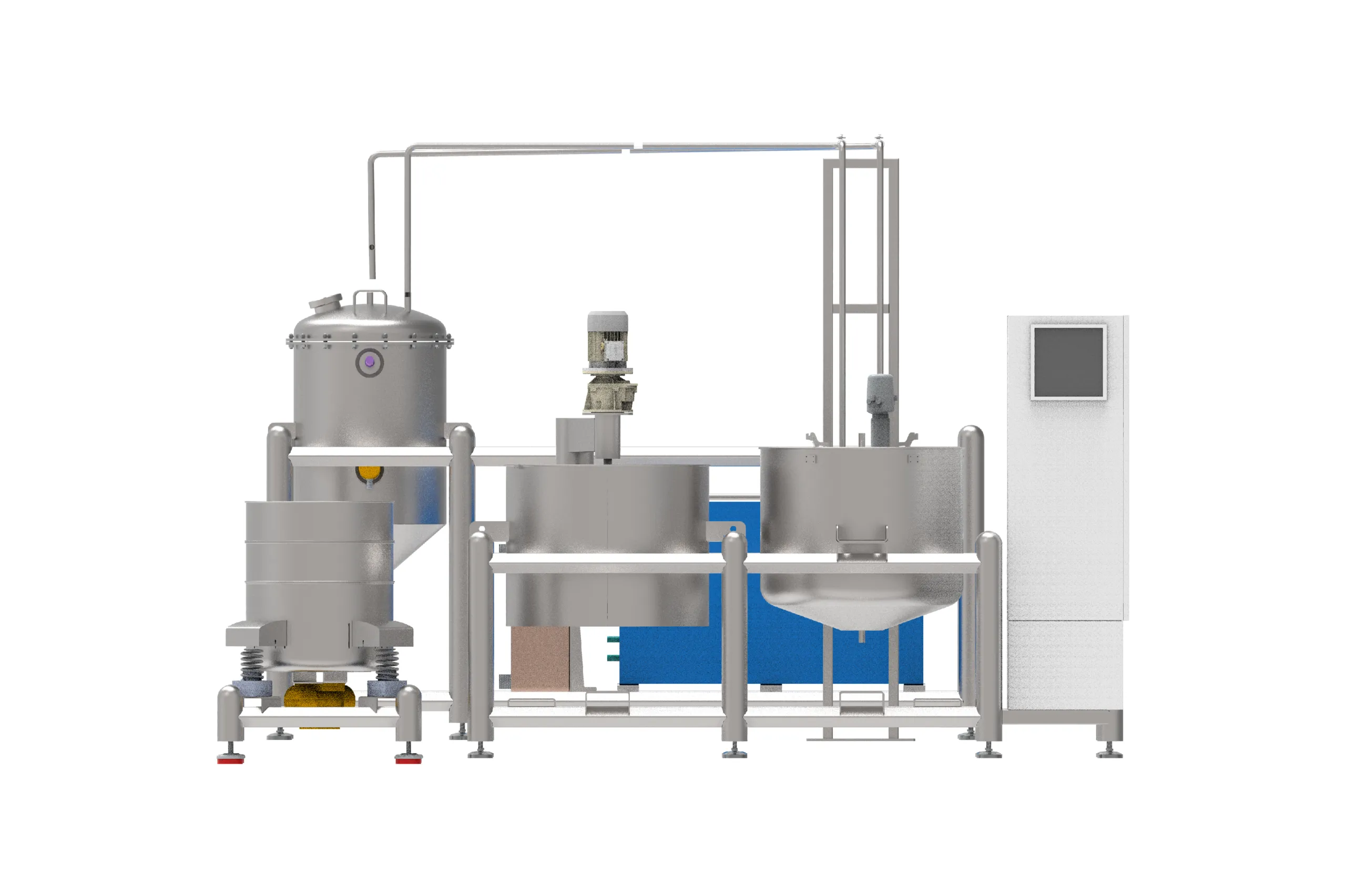

Nordex 50: A Compact Solution for Bubble Hash
Small-Batch Solventless Extraction for Premium Cannabis and Hemp Processing
The Nordex 50 Cold Water Extraction System is a compact, automated solventless extraction solution designed for cannabis and hemp processors seeking to produce premium bubble hash and isolator products from fresh frozen biomass. Engineered for small-batch production, the system processes approximately 2 to 3 kg of material per batch using temperature-controlled cold water extraction to separate valuable trichomes from plant matter.
By combining controlled agitation with integrated cooling and a multi-stage filtration system ranging from 250 to 40 microns, the Nordex 50 helps preserve cannabinoids, terpenes, and other desirable compounds while supporting consistent, high-purity extraction outcomes. This approach allows processors to maintain the integrity of the source material and produce concentrates that reflect the full character of the cultivar.
