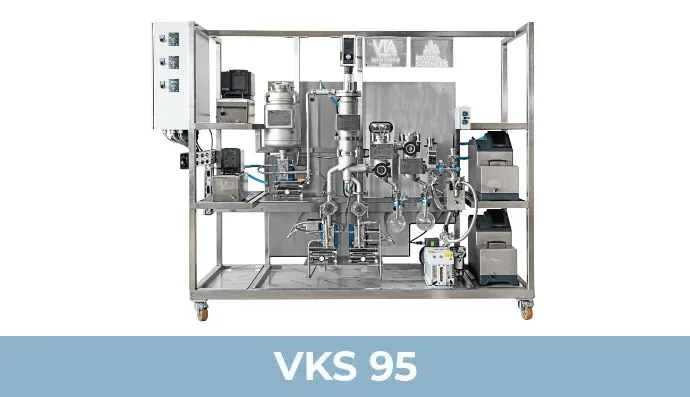

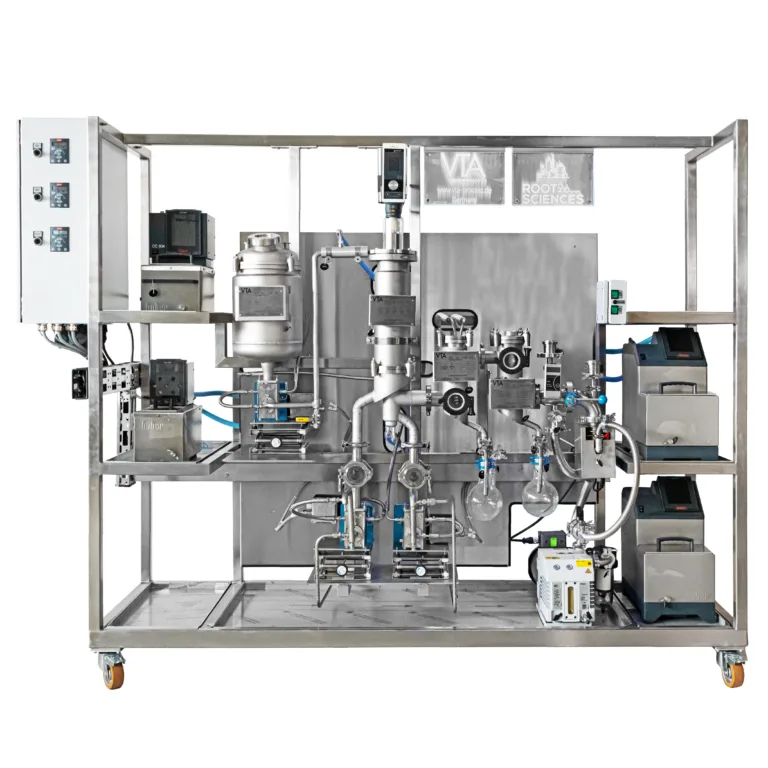

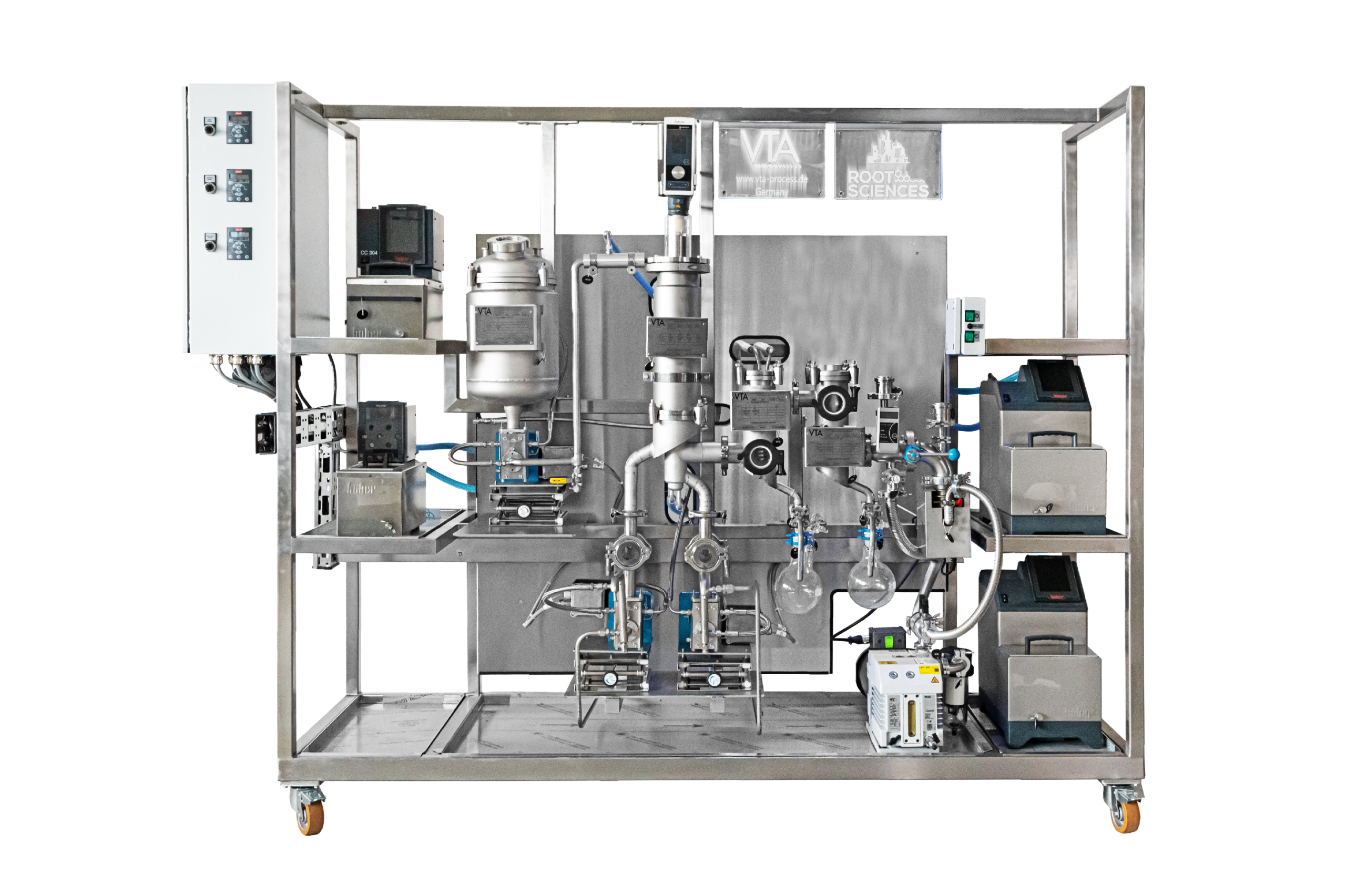

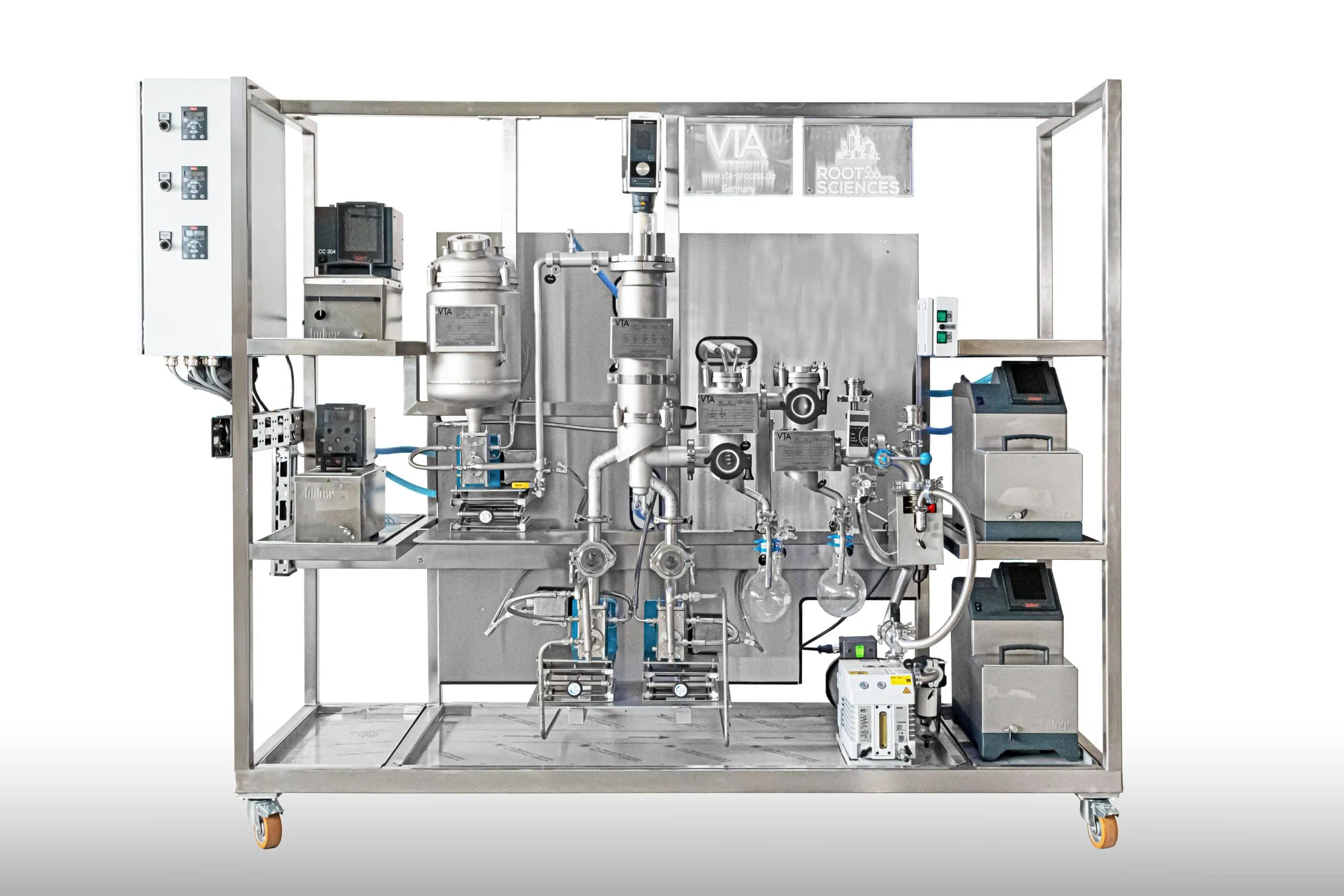

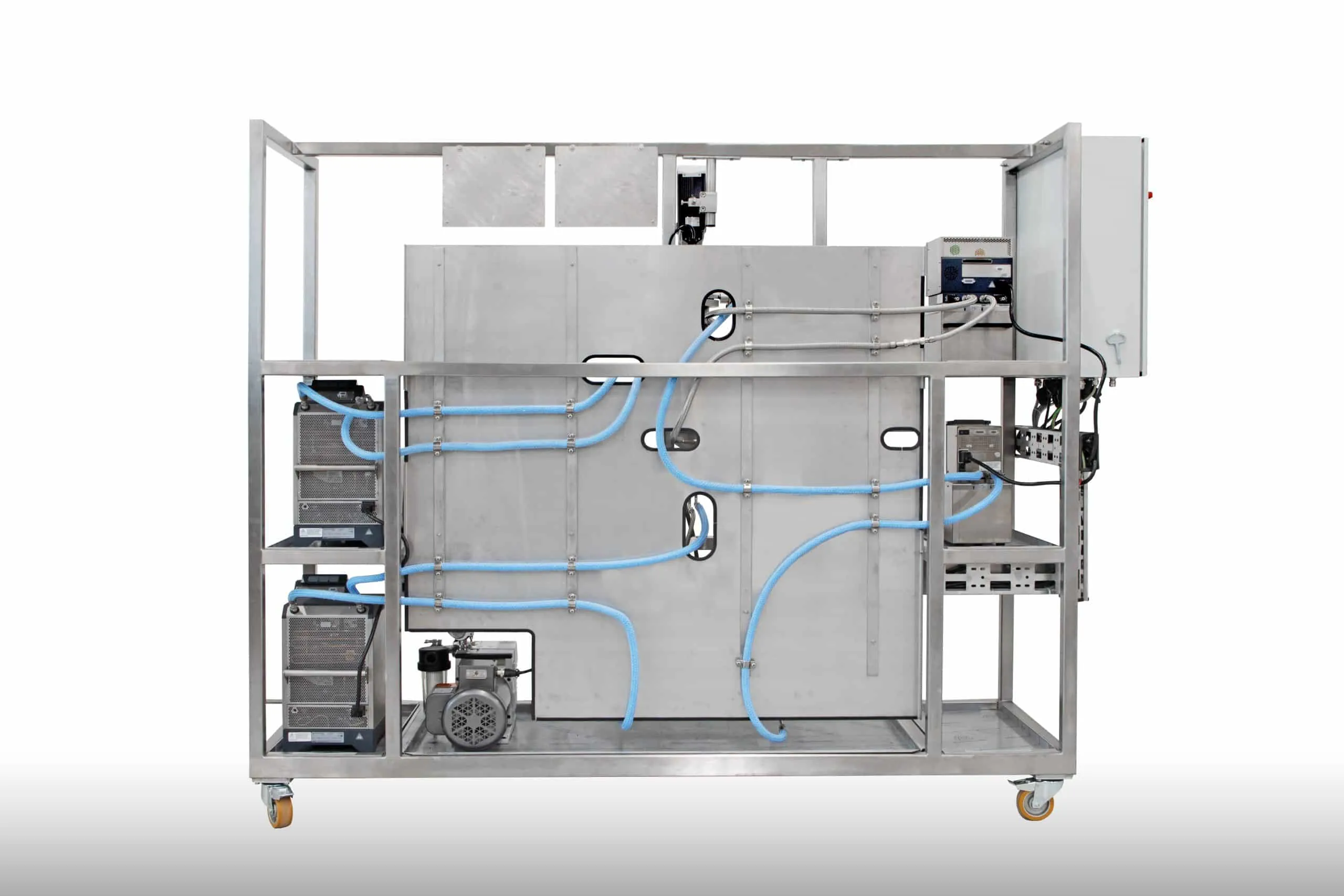

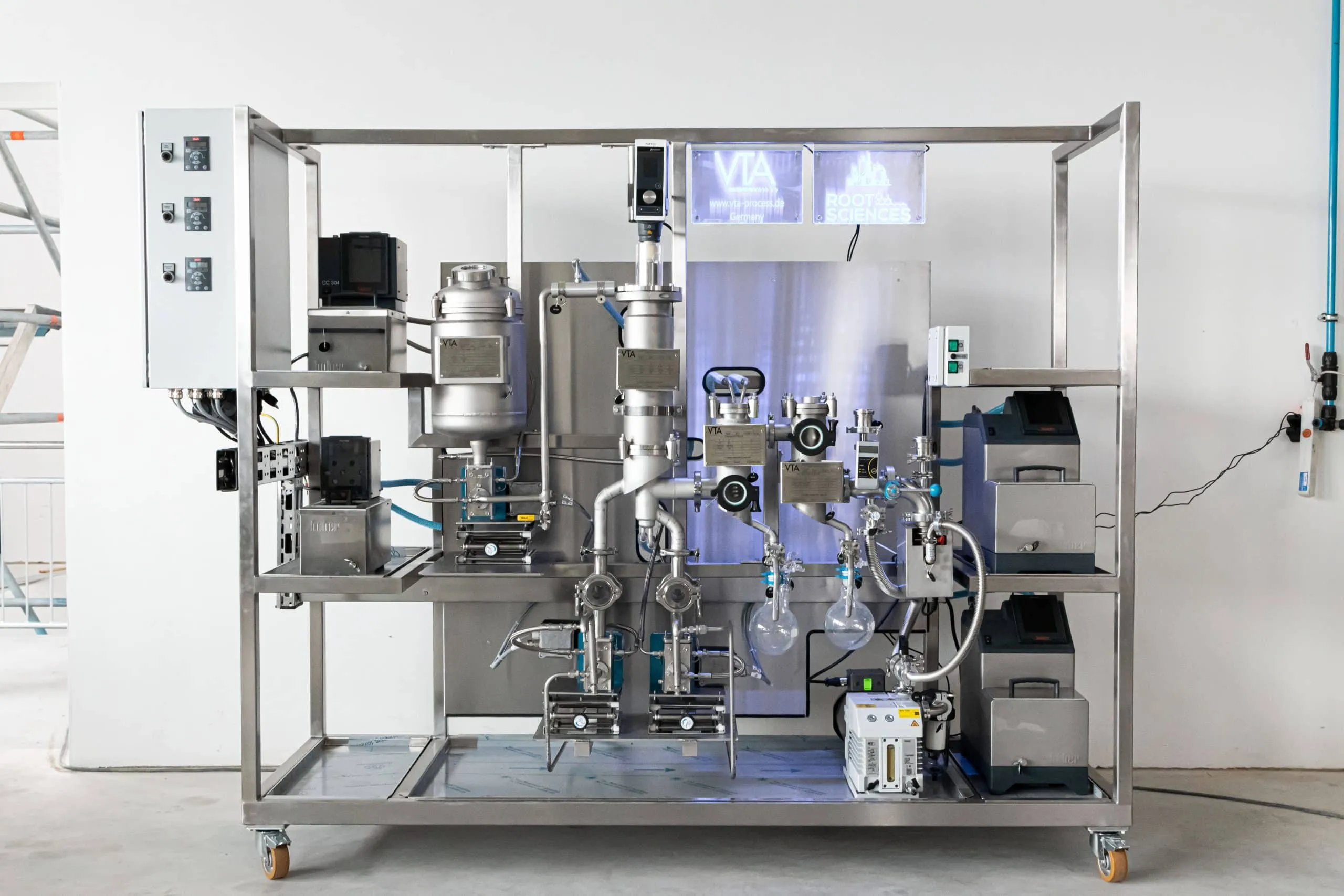

VKS 95 Wiped-Film Short Path Distillation System
Commercial-Scale Wiped-Film Distillation for Cannabis Processing
The VKS 95 is used in cannabis and hemp processing to refine extracted oils by separating cannabinoids from heavier components using wiped-film distillation. It is typically implemented in commercial workflows where consistent, higher-capacity refinement is required on a day-to-day basis.
System Highlights
- Engineered by VTA in Germany
- True continuous feed operation
- Fully jacketed wiped-film evaporator
- Built for commercial-scale processing
- GMP-ready system design
Equipment Specifications
| Maximum Feed Rate: | 14.27 L/h |
| Typical Throughput: | 5.5 L/h |
| Evaporator Surface Area: | 0.10 m² |
| Stages: | Single |
| Power Requirements: | 1 Φ, 230 V, 60 Hz |
| Dimensions (L x W x H): | 8.2’ x 2.4’ x 6.5’ |
| Materials Used: | 316 SS, borosilicate glass, graphite wiper blocks |
| Warranty: | 1 year (excluding glass and vacuum system) |
Certifications
- UL ready (all necessary individual components are UL listed)
Options
- Dual-stage upgrade available
- Immersion chiller for cold trap
- Separate heater for residue discharge arm
- GMP package to include IQ, OQ, FAT, SAT
- Heated transfer hose to connect multiple units in series
The VKS 95: Commercial-Scale Wiped-Film Distillation
Designed around consistency, throughput, and day-to-day operation
The VKS 95 is a wiped-film distillation system used in cannabis and hemp processing to refine extracted oils into a more uniform distillate through continuous thin-film separation. In this process, material is distributed along a heated surface under reduced pressure, allowing cannabinoids to separate from heavier compounds in a controlled and repeatable manner. This approach is commonly used when processors need consistent refinement without relying on batch-based distillation methods.
Within commercial processing workflows, the VKS 95 is typically positioned after extraction and initial preparation steps such as winterization and filtration. Its continuous operation supports steady production schedules and predictable output, which is important for facilities supplying distillate for downstream applications like vape formulations, edibles, tinctures, and infused products. By maintaining stable operating conditions and clear process flow, the VKS 95 is well suited for processing environments where throughput, reliability, and consistency are key considerations.

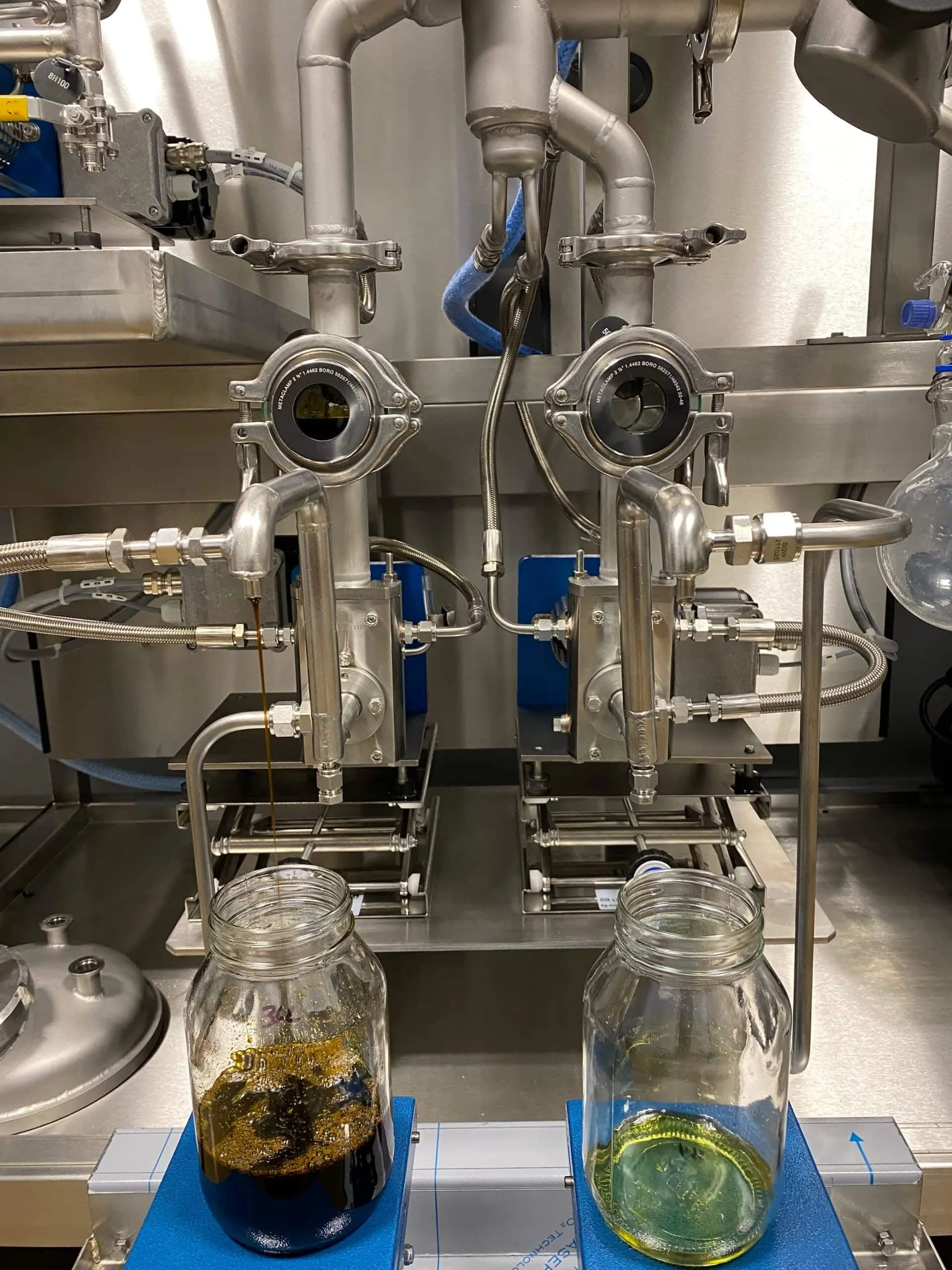

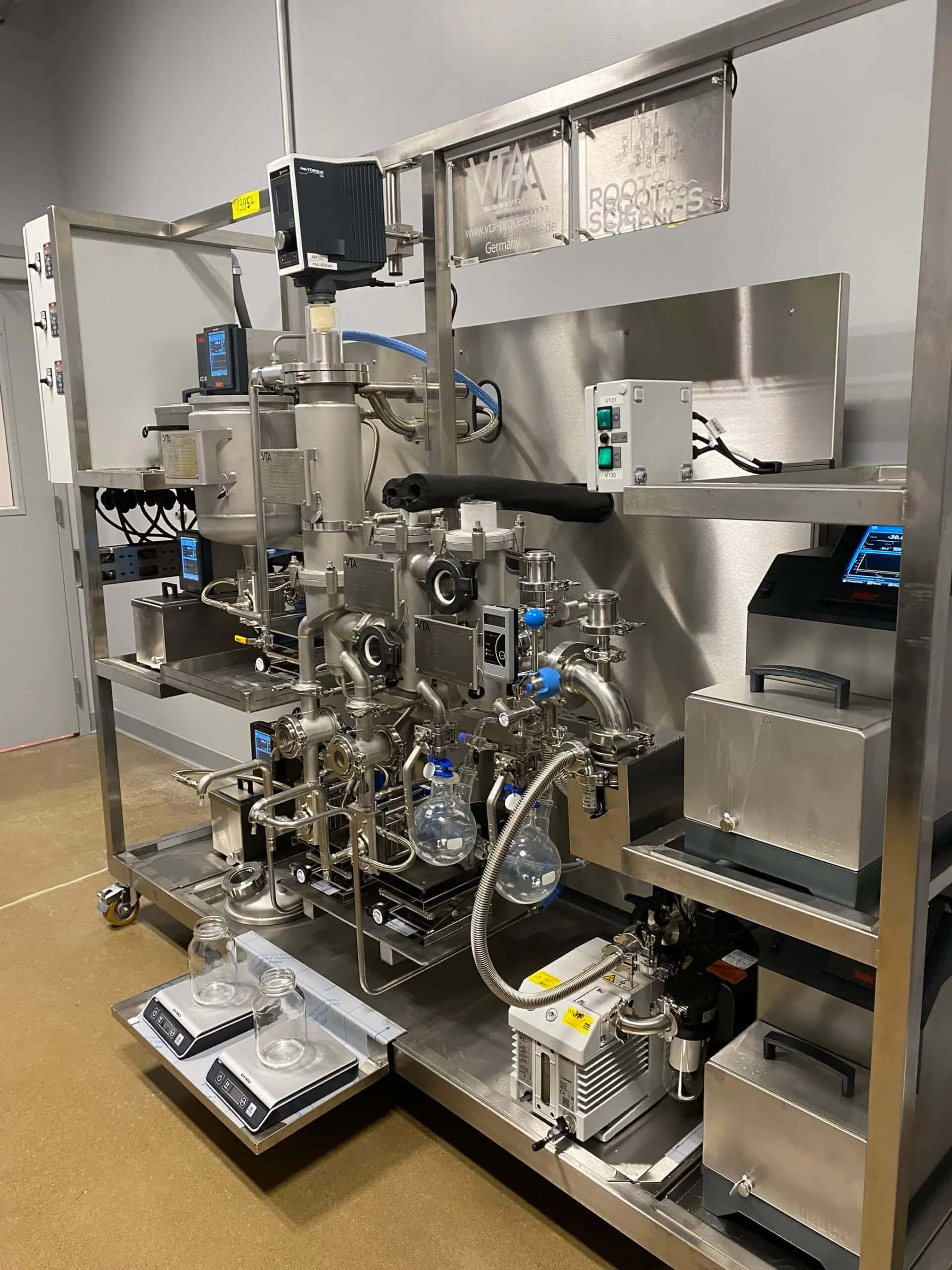

Dual-Stage Upgrade
The VKS 95 Dual-Stage upgrade expands a single-stage wiped-film distillation system into a dual-stage configuration, allowing cannabis and hemp processors to significantly increase overall throughput while maintaining controlled cannabinoid separation. By adding a second wiped-film evaporator in series, this upgrade supports higher-volume distillation within existing post-extraction workflows and removes the need to change parameters and run a second pass as you would on a single-stage machine. This upgrade can be performed at anytime.
Frequently Asked Questions
Where does the VKS 95 typically fit within a cannabis or hemp processing workflow?
The VKS 95 is commonly used after extraction and initial preparation steps, such as winterization and filtration, as a primary distillation system for producing refined distillate at commercial scale. It is often positioned in workflows that require steady, higher-throughput refinement on a daily basis.
How does the VKS 95 differ from smaller wiped-film distillation systems?
Compared to smaller wiped-film systems, the VKS 95 is designed to support higher throughput and longer continuous run times. This makes it more suitable for commercial facilities that operate at scale and need predictable output rather than batch-style processing.
What types of facilities typically use the VKS 95?
The VKS 95 is commonly used by mid- to large-scale cannabis and hemp processors operating commercial distillation labs. It is well suited for facilities that supply distillate for downstream manufacturing, such as vape products, edibles, tinctures, and topicals.
How does wiped-film distillation support consistency at higher production volumes?
Wiped-film distillation spreads material into a thin film and operates under reduced pressure, allowing cannabinoids to separate in a controlled and repeatable manner. This approach supports stable operation and consistent output, which is important as production volumes increase.
What role does continuous operation play in commercial distillation?
Continuous operation allows material to be processed steadily over time rather than in discrete batches. For commercial facilities, this helps maintain predictable workflows, reduce downtime between runs, and support consistent distillate quality.

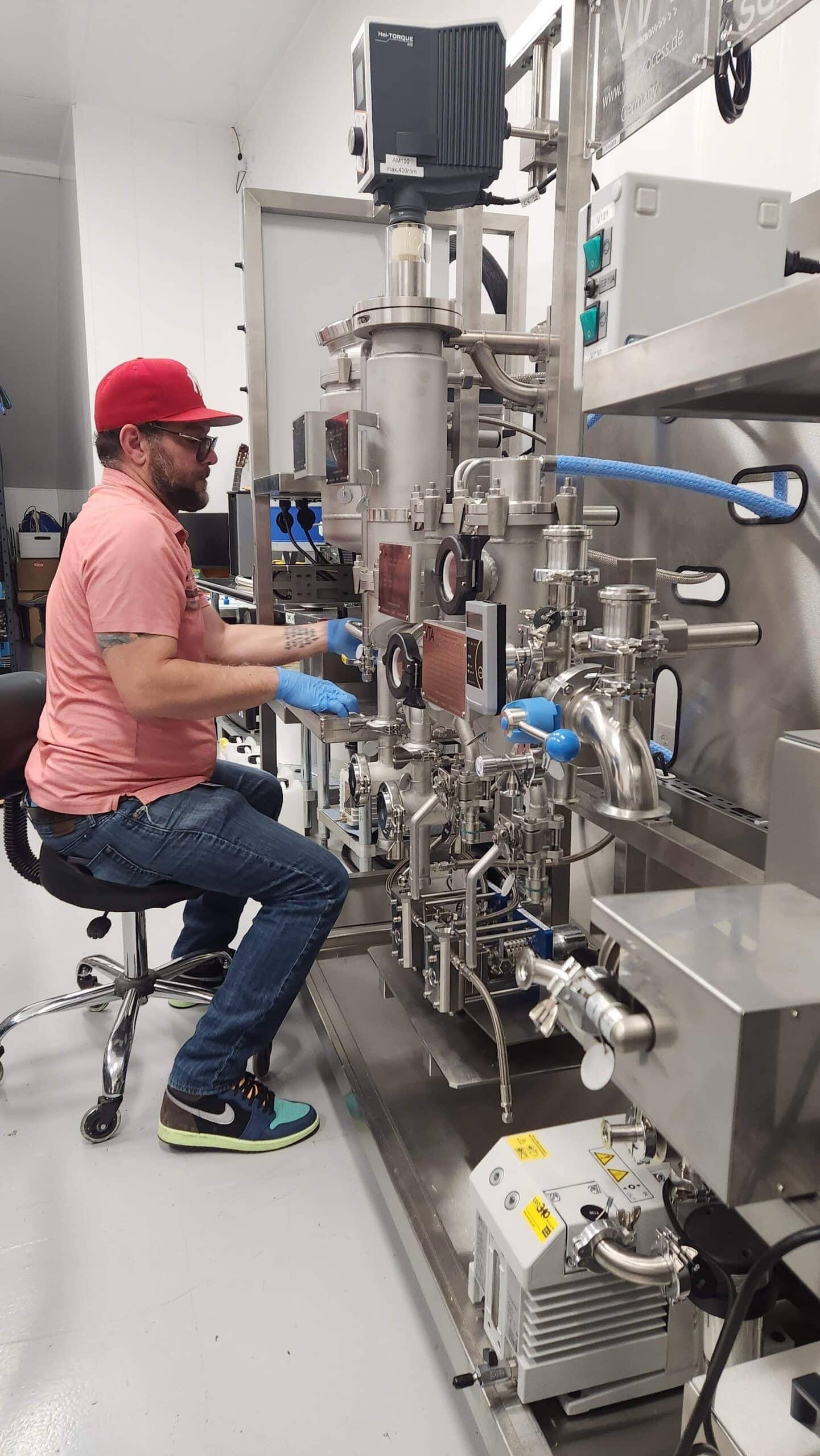

How does operator visibility benefit day-to-day use of the VKS 95?

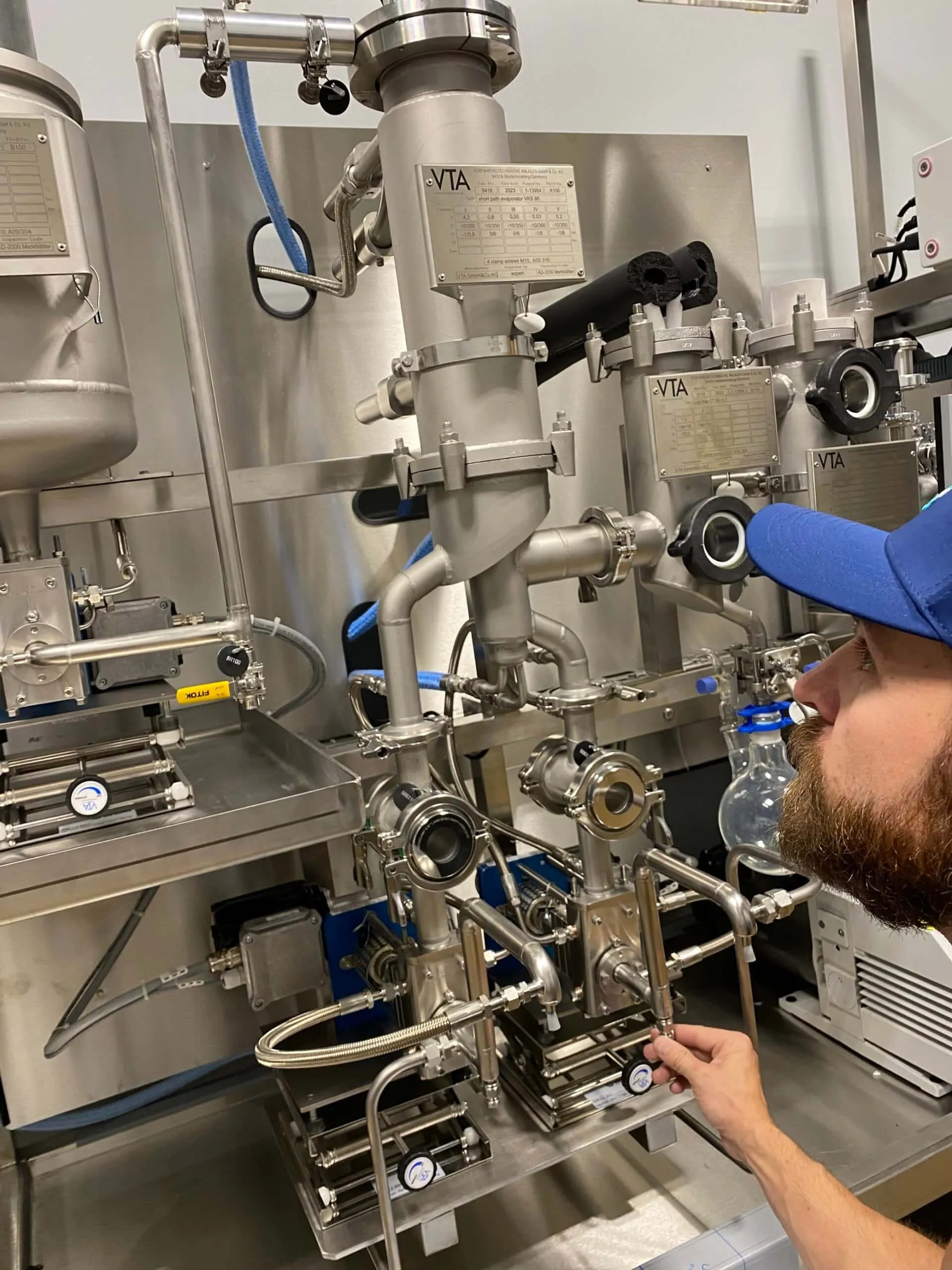

Visible process components allow operators to observe film behavior and general operating conditions during distillation. This visibility supports process understanding, troubleshooting, and maintaining stable operation over extended production runs.
How is the VKS 95 typically integrated into existing processing lines?
The system is usually integrated with external vacuum systems, heaters, feed pumps, and downstream collection equipment. Its design allows it to be incorporated into established post-extraction workflows without requiring major changes to facility layout.
What should processors consider when moving to a system like the VKS 95?
Processors often consider available floor space, staffing and operator experience, production targets, and long-term growth plans. Evaluating how distillation fits into the overall workflow is key when transitioning to higher-capacity systems.
How does the VKS 95 support repeatable distillate quality over time?
When operated under stable conditions with consistent feedstock preparation, the VKS 95 is designed to deliver repeatable separation across ongoing production runs. This consistency is important for downstream formulation and product standardization.
Is the VKS 95 compatible with future expansion or upgrades?
The VKS 95 platform can support configuration changes, such as dual-stage upgrades, allowing processors to increase throughput over time without replacing their core distillation system.
